We carry a variety of covert (invisible) and overt (visible) infrared illuminators. The infrared illumination from covert IR devices can be seen only by IR sensitive cameras and by night vision devices (image intensified devices). Some IR illuminators are designed for short range applications and some are designed for long range applications (typically laser type IR illuminators).

We also carry a variety of covert and visible IR Laser Aiming Devices.

Please call for information.

Bait Car IR Illuminators

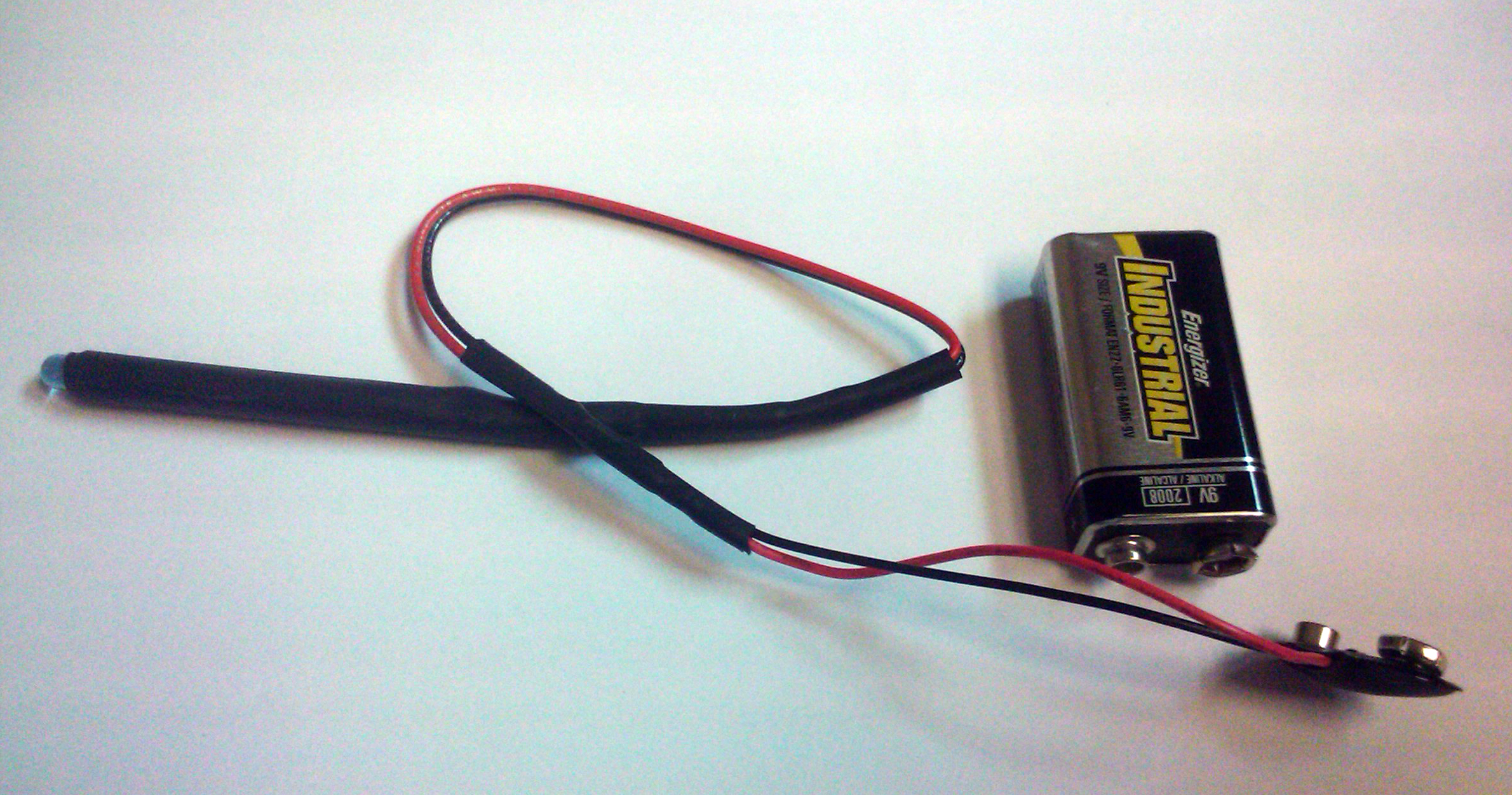

ATE-940BAIT IR Illuminator (Single IR LED Model)

FEATURES Designed for concealment in small places in a bait vehicle Completely covert (not visible to the human eye) Compact Lightweight Solid state components Powered by standard 9V battery Noiseless Cool running

SPECIFICATIONS Spectral Emission:  940 nm (non-visible) Number of LEDs: 1 Beam Angle:  90 Degrees Area Coverage:     At 3 feet – 6 foot circle of illumination Power Requirements:  9V Power Consumption:  80 ma Radiation Power:  80 mW Luminous Intensity (@50 ma:  ~79 mW/sr Battery Life: ~ 7 hours     * with 600 mAh 9V alkaline battery Size:  0.3 inch diameter; 14 inch power cable Weight: 0.4 oz. (without battery) Operating Temperature:     -40 deg. C to 85 deg. C Storage Temperature:     -40 deg. C to 85 deg. C

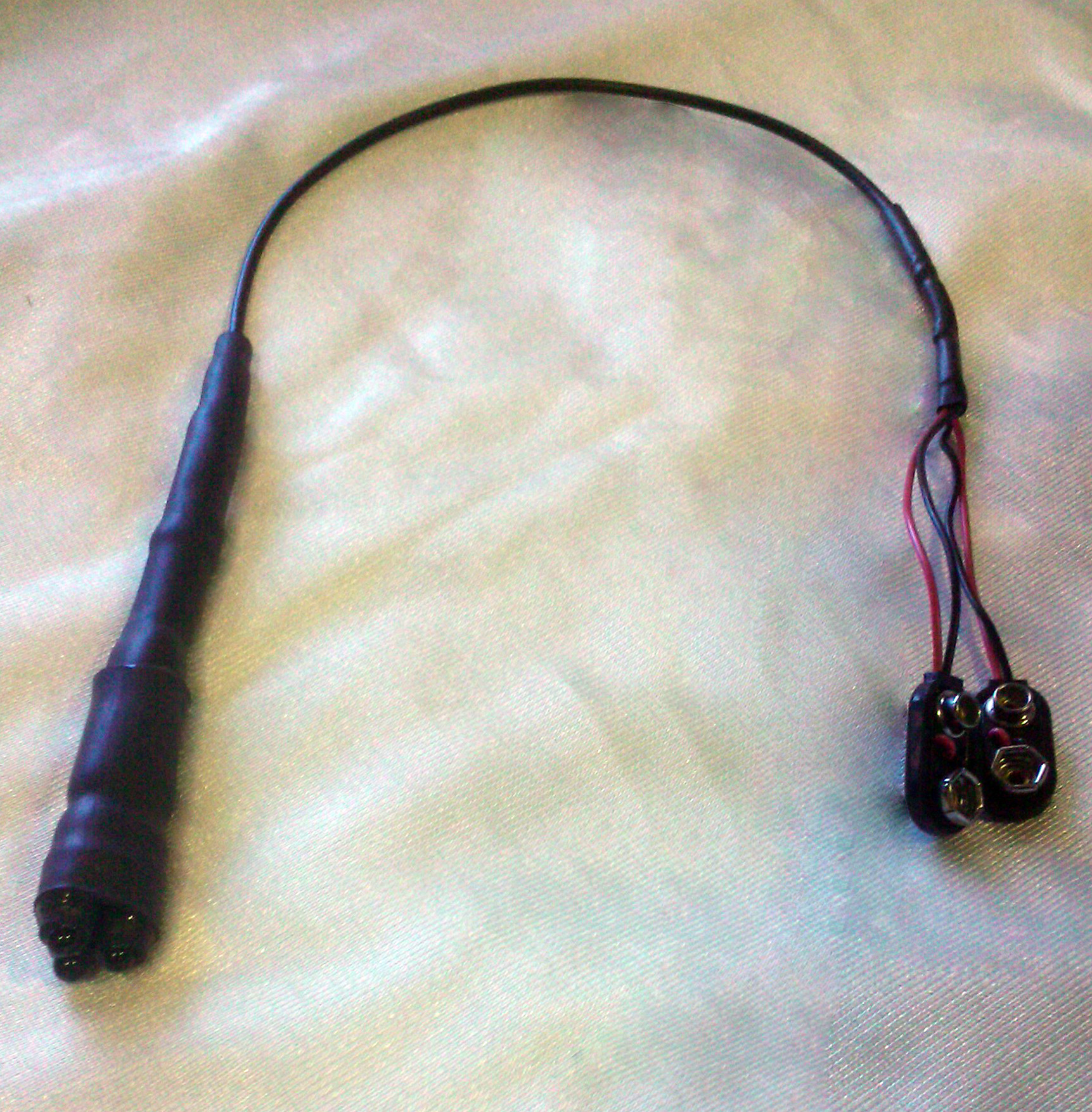

ATE-940BAIT-3 IR Illuminator (3 IR LED Model)

FEATURES Designed for concealment in small places in a bait vehicle Completely covert (not visible to the human eye) Compact Lightweight Solid state components Powered by standard 9V battery Noiseless Cool running

SPECIFICATIONS Spectral Emission:  940 nm (non-visible) Number of LEDs:  3 LED Beam Angle:  90 Degrees Area Coverage:     At 6 feet – 12 foot circle of illumination Power Requirements:  9V Power Consumption :  240 ma Radiation Power Per LED:  80 mW Luminous Intensity Per LED @50ma:     ~79 mW/sr Battery Life:     ~ 2.3 hours with one battery connected     ~ 4.6 hours with two batteries connected     * using 600 mAh 9V alkaline batteries Size:  0.3 inch diameter; 14 inch power cable Weight:     0.9 oz. (without batteries) Operating Temperature:     -40 deg. C to 85 deg. C Storage Temperature:     -40 deg. C to 85 deg. C

Hand Held IR Illuminators

These covert illuminators have a range of up to 600 feet. The ATE/IR1000L is a laser type IR illumiator powered by two AAA batteries. Its collimated lens can be focused from a small diameter dot to a wide angle beam. It has an IR intensity control that adjusts the IR beam intensity for near and long range operation. Since they operate in the IR wave length, they cannot be seen by the human eye. Their illumination can be seen by IR sensitive cameras and by night vision devices.

ATE/IRM1 Flashlight Style	ATE/IR980L Laser Illuminator

	ATE/IRM1 Brochure	ATE/IR980L Brochure

IR Markers

These devices can be used for "covertly" marking a target that can be seen only through IR sensitive cameras (such as are shown in our camera section) or by image intensified night vision devices (such as are shown in our night vision section). Various blinking rates are available as well as some with constant IR light output. A 9-volt battery powers these devices.

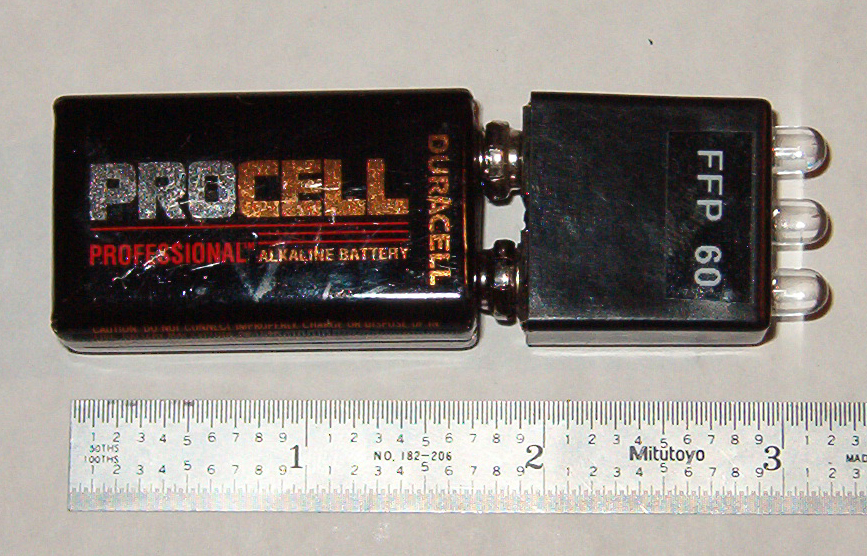

ATE/IRBLINK60

Infrared "Blinker" (invisible to the eye but IR sensitive cameras and night vision devices can see it)

	ATE/IRBLINK60 Brochure

Flood/Spot Infrared Illuminators

With their special tungsten-halogen lamps or high performance IR LED's, ATE'S Infrared Illuminators offer up to 656 foot range depending on the model.

Models are available in spot, medium, and flood illumination. Infrared illumination is available in semi-covert, and covert wave lengths (730 nm to 950 nm. Lamp and Filter is specified upon ordering and are installed at the factory. Power requirements range from 12VDC to 120VAC depending on the model. All illuminators are rated for indoor and outdoor applications.

Please call us (972-423-6008) so that we can understand your application and requirements. We will assist you in selecting the proper IR illuminator for your application.

ATE/IR05 Up to 49 ft 60 Deg	ATE/IR06 Up to 200 ft 70 Deg	ATE/IR07 Up to 656 ft 25 Deg	ATE/IR08 Up to 328 ft 60 Deg	ATE/IR10 Up to 326 ft 45 Deg	ATE/IH200D-L Laser IR Up to 600 ft	ATE/IL04 Up to 656 sqft area @40 ft distance
Brochure 880nm Brochure 940nm	Brochure	Brochure	Brochure	Brochure	Brochure	Brochure

IR Short Range Illuminators

These illuminators are designed for close range operation (up to 50 feet with some models). We carry several models of IR illuminators to fit a variety of applications. The ATE/IL05 shown above is weather protected and its 140 IR LED's are automatically turned on when it gets dark. It has a 60 degree beam spread to illuminate wide areas at up to 49 feet distance. It is supplied with a mounting bracket and AC/DC power adapter.

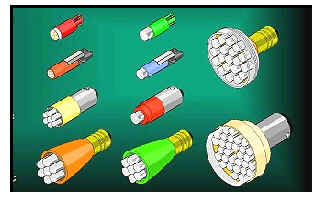

Bulb Style Illuminators

	Bulb Style IR Illuminator Brochure
